Description

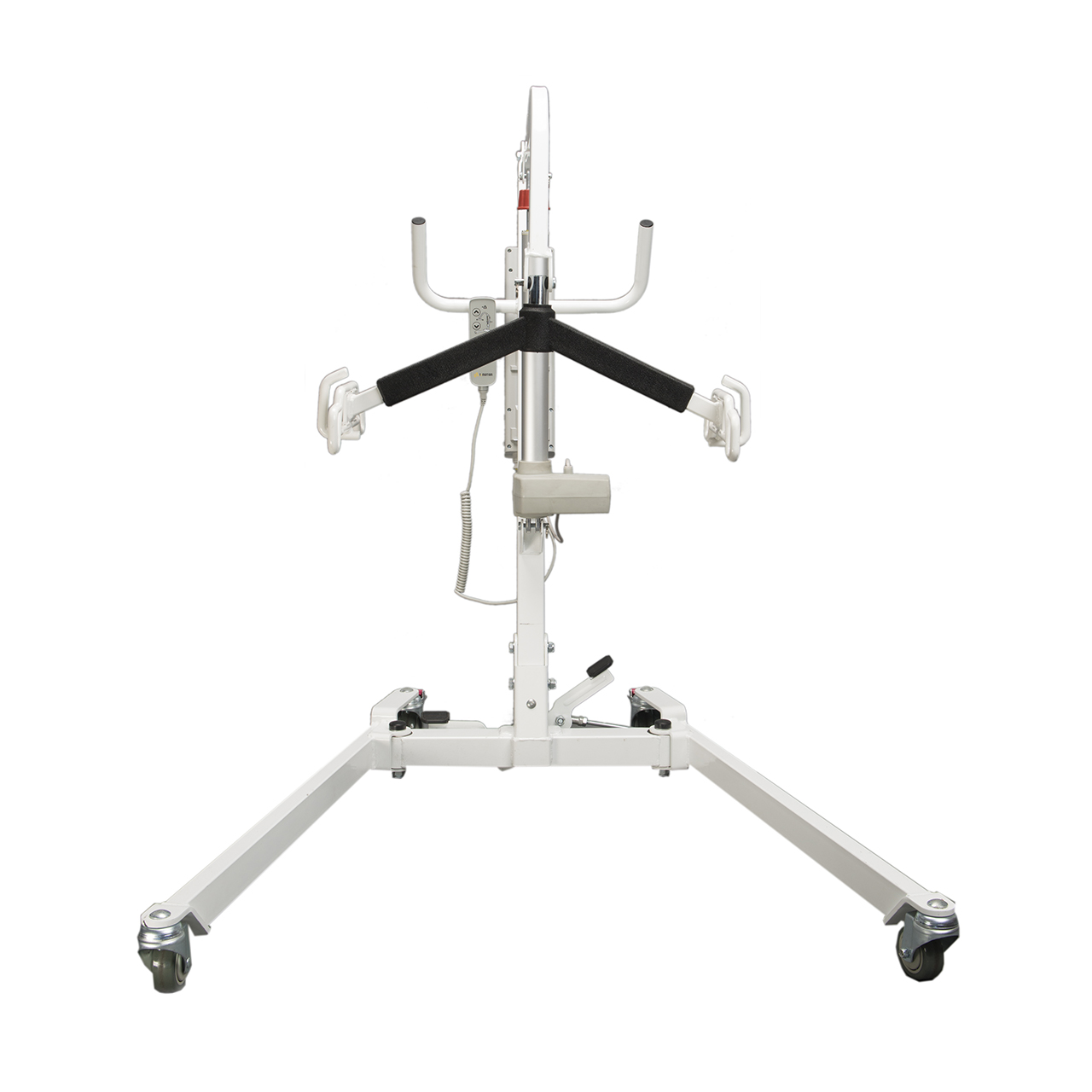

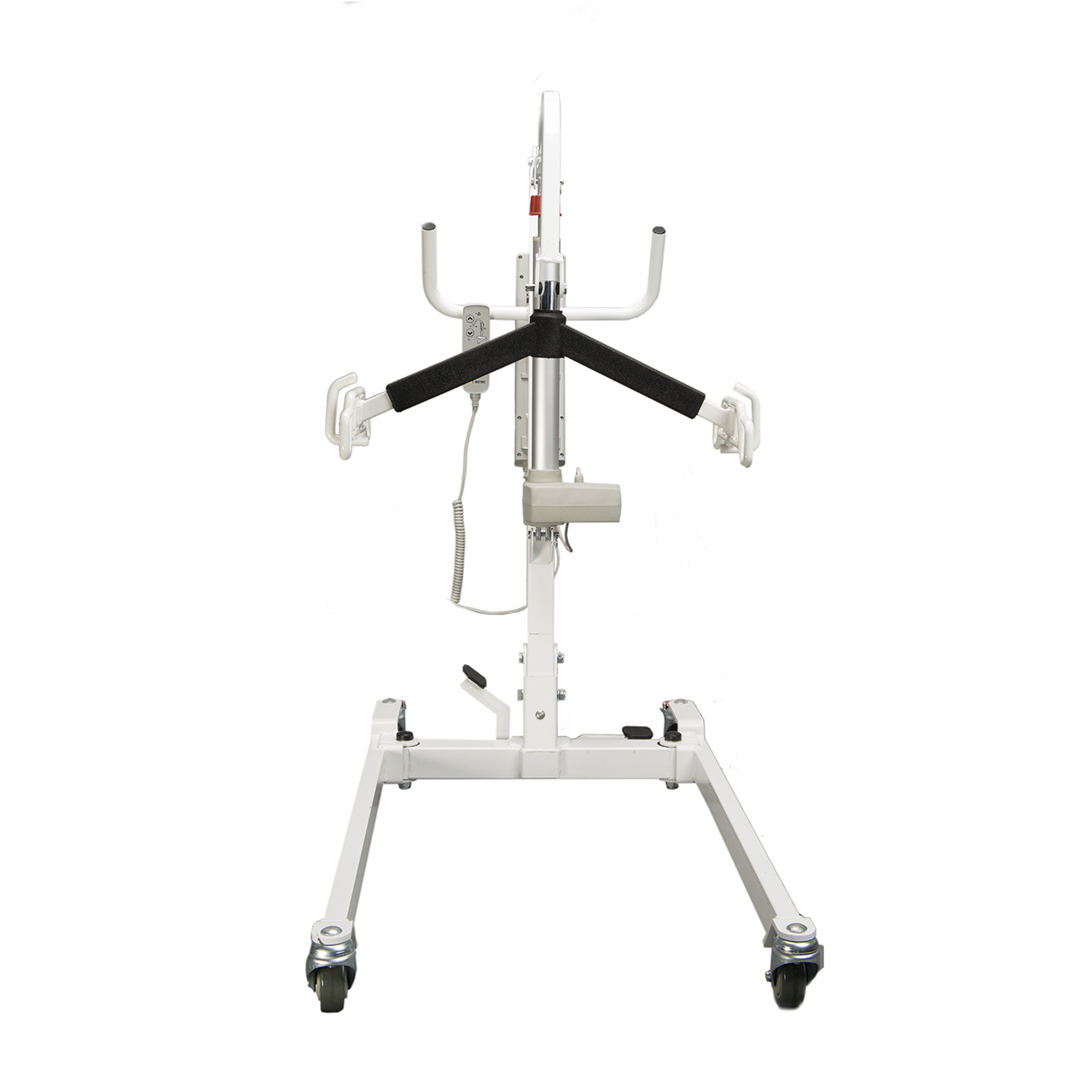

Proactive Medical Protekt 500/600 Powered Patient Lifts

The Protekt 500 and 600 lifts safely transfer to patients with minimal caregiver effort. It features a 500 or 600 lb weight capacity and can lift patients from the floor. The 6-point spreader bar allows comfortable patient transfers with a variety of sling options. The low base easily fits under beds and the large casters roll easily over floors.

** Patient sling sold separately **

Features

• Capable of lifting patients from the floor
• Control box with LCD screen and emergency on/off
• 6-point spreader bar accommodates multiple sling options
• Low 4.7″ base easily slides under beds
• Advanced electronics with auxiliary up/down lift controls
• Manual emergency lowering in event of power loss

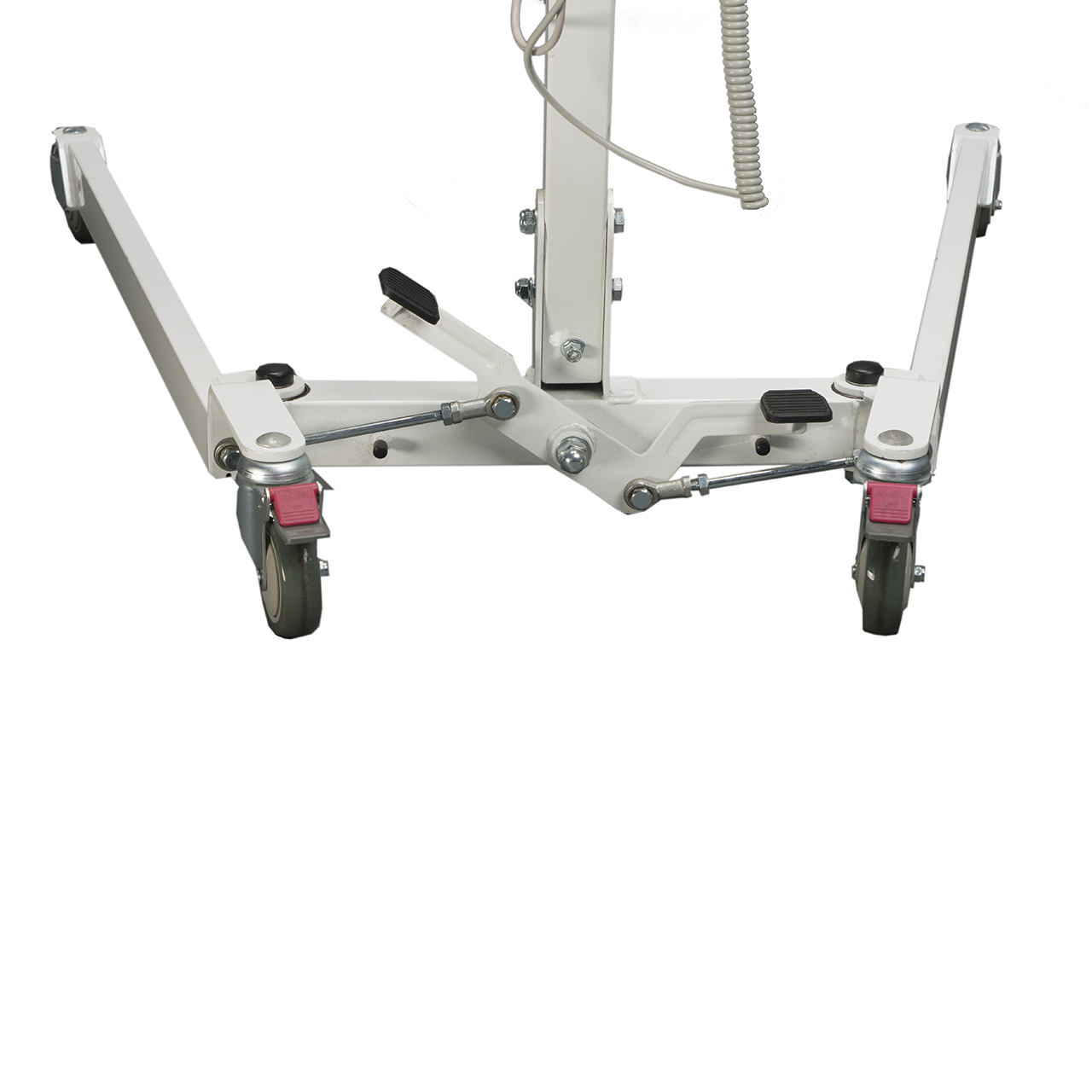

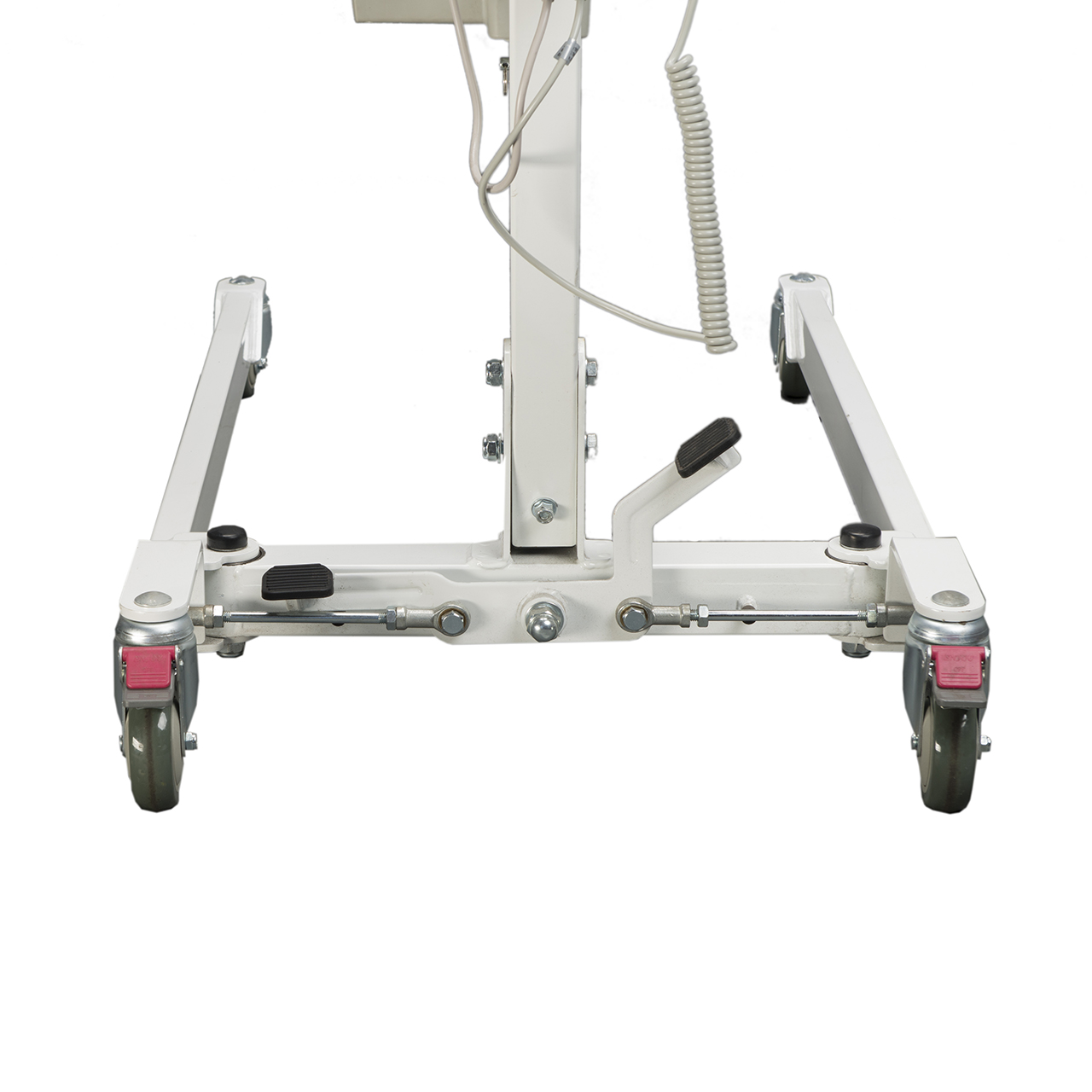

• Base width opens and closes with ergonomically designed foot pedal
• Dual rear locking casters
• Base opens to 44″ wide to fit around recliners and commode
• Clip-free sling connections for safety and convenience
• Modular design allows easy replacement of parts if needed

** Patient slings sold separately **

Specifications

• Weight Capacity
  • Protekt 500 Lift: 500 lbs
  • Protekt 600 Lift: 600 lbs
• Lifting range: 27.2″ – 70.9″
• Base width: 26″ closed/44″ open
• Base length: 45″
• Mast height: 48″
• Casters” 3″ front/4″ braked rear
• Weight: 95 lbs
• Lift Warranty: 3 years
• Electronics Warranty: 2 years

Optional Digital Scale

This scale is designed for use with the Proactive Medical Protekt 500 and 600 patient lifts. It is ideal for patients who require regular weight monitoring as part of their therapy.

• Displays weight in kg and lbs
• Digital calibration and Overload alarm
• Lightweight aluminum case with Dedicated weight load cell
• Large clear digital display with Adjustable backlight brightness
• Auto-power off function to prolong battery life
• Includes batteries and universal bracket kit
• Warranty: 2 year limited
• Proactive Medical# 30300

Options

• Protekt 500 Lift: Proactive Medical #33500
• Protekt 600 Lift: Proactive Medical #33600
