Sale!

Graham Field Patriot Full Electric Bed Set

SKU: GFPAT-Full
Categories: , ,
Availability: Arrives in 3-5 business days* Tag:

$2,000.00 $930.00

Mattress Options *

Rail Options *

Bed/Mattress Length *

Bed/Mattress Width *

Service Contract

Delivery Options *

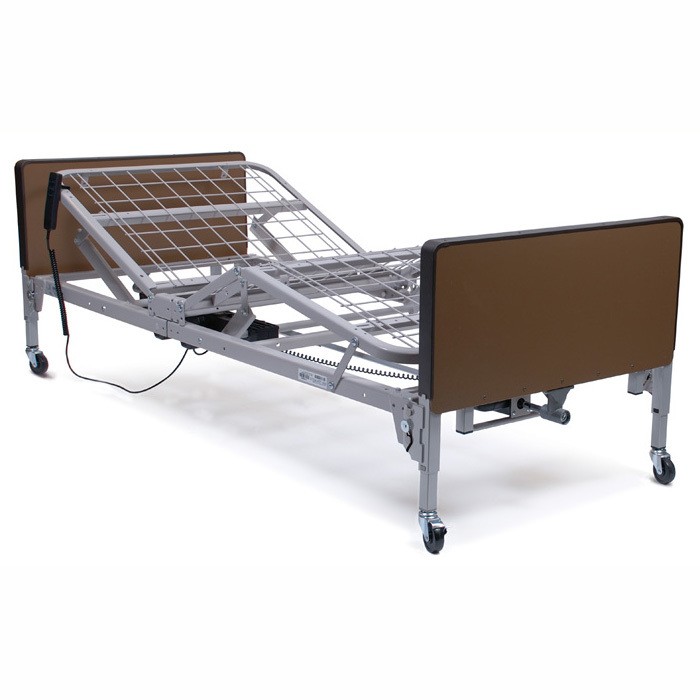

The single-motor design homecare bed is now available in a full-electric/low version. The Patriot Full-Electric Homecare Bed offers the same features as the Patriot Semi-Electric Homecare Bed with the additional feature of electric height adjustment. This makes it easier for caregivers to raise and lower the bed for patient care and linen changes. The electric height adjustment also enables the patient to easily position the bed for maximum comfort.

Patriot Full Electric Bed (Hi-Lo Optional Setting)

  • Grid Deck:
    • Much stronger frame.
    • Better mattress support.
    • No spring sag or bottoming out with heavier patients.
    • Easier to clean.
    • No connecting links or springs to lose.
  • Hi-Lo Optional Setting: Bed has two caster settings that will lower the bed down to 9.5″ at the low caster setting and 13″ at the higher caster setting.
  • Lightweight and durable Total assembled bed weighs only 178 pounds (bed and motor).
  • Hi-Lo motor comes pre-installed on foot section for easy set-up and disassembly.
  • All functions fully-integrated into convenient handheld pendant.
  • Welded motor-guard protects motor and universal joint from damage during shipment and deliveries.
  • Available with Fiberboard Decorative Walnut Bed-ends or High-impact Plastic Bed ends.
  • Maximum patient weight 350 lbs.
  • Height Adjustment:
    • Casters in Low Position: Min. 9.5″, Max. 20″ (at deck level)
    • Casters in Standard Position: Min. 13″, Max. 23.5″ (at deck level)
  • Overall Bed Size: 87″” L x 36″” W.
  • Lift Range: Head – 60°, Knee – 30°.
  • Safe operation for user and caregiver: No external pinch points!
  • Easy Side Rail Installation: Slots in frame to ensure proper rail placement.
  • Locking pins secure bed ends to sleep deck. Attached lanyards prevent loss while moving or storing.
  • Made in the USA unlike most beds in the marketplace the Patriot is made in the USA and comes with the quality and durability you would expect from Made in the USA.

Mattress Options

Standard MedPrevention Pressure Redistribution Mattress

This mattress conforms to the patient’s body to provide support as the patient moves.
  • Pressure Redistribution is achieved by using various cell depths throughout the mattress with special attention to the vulnerable heel section.
  • Unique Pressure Zones: Channel cut high density polyurethane foam.
  • 670 Individual cells offer superior pressure redistribution.
  • Foam core is fire-retardant and anti-microbial/anti-bacterial.
  • The cover is anti-microbial and anti-fungal, provides low moisture vapor transmission, is fluid resistant and has a 360 degree zipper for easy removal for cleaning.
  • Size: 36” x 80” x 6” Weight Capacity: 300 lbs.
  • Warranty: 4 Year, Non-Prorated

Plus MedPrevention Pressure Redistribution Mattress

This mattress provides exceptional pressure redistribution for moderate to high risk patients with close attention paid to the sacral and heel area.
  • Contains multi-tiered pressure redistribution mattress with top layer of die-cut high density foam in the head & torso section.
  • High-resilient foam in the heel section for unparalleled pressure redistribution.
  • Patient transfer support system allows easy transfers by providing additional support around the edge.
  • The 4-way stretch nylon cover reduces perspiration and provides a low shear friction surface that is anti-microbial and water resistant.
  • Anti-Contamination Flap covers the zipper to reduce possibility of fluids ruining the foam core.

Premium Precision Cut Contour Mattress

  • Multi-tiered pressure redistribution mattress with top layer of patented Lura-QuiltTM foam is aerated which allows air to continuously circulate reducing heat buildup, perspiration and skin maceration.
  • The sloped heel section reduces pressure and increases blood circulation by redistributing the load from the heel to the less vulnerable lower leg.
  • The heel section is precision cut to allow air to circulate under the patients heel, which keeps the skin cool and dry reducing perspiration.
  • Top cover is a 4-way stretch nylon which reduces perspiration and provides a low shear friction surface that is anti-microbial and water resistant.
  • Anti-Contamination Flap covers the zipper reducing the possibility of fluids contaminating the foam core.
  • Designated head and foot sections.
  • Fire sleeve to meet Federal Fire Code 16 CFR part 1633.
  • Weight Capacity: 450 Lbs.
  • Warranty: 15 year, Non Prorated Warranty.

Premium MedPrevention Pressure Redistribution Mattress

  • This mattress comes with the Visco Gel Polymer Technology (VGPT) that provides extraordinary pressure redistribution, rapid heat dissipation, and vast increases in breathability.
  • VGPT is an open cell memory foam, infused with gel polymers, designed for clinical superiority and patient comfort.
  • VGPT reduces occurrence of pressure sores, channels heat away from the body, provides more support with less cradling, eliminates static fatigue and keeps patients cool, dry and comfortable.
  • This premium mattress uses a 30 degree heel slope to redistribute pressure.
  • Comes equipped with a top layer of Lura-Quilt foam that keeps the skin cool and dry.
  • Size: 36” x 80” x 6” Weight Capacity: 1,000 lbs.
  • Warranty: 15 Year, Non-Prorated

Bed Rail Options

Half Side Rails (Pair)

  • Heavy-duty 1″ chrome-plated, welded steel construction
  • Dual flat-channel crossbraces are secured with wing-nut clamp assemblies (some assembly required)
  • For optimal safety and convenience, four half-length rails are recommended (one set for head area and one set for foot area)
  • PLEASE NOTE: Half Rails won’t be fully usuable at the low level caster setting on the bed.

Full Side Rails (Pair)

  • Heavy-duty 1″ chrome-plated, welded steel construction
  • Optimal for safety, provides almost full bed coverage
  • PLEASE NOTE: Full Rails won’t be full usable at the low level caster setting on the bed.

Service Options

Worry Free Service Contracts

1 to 3 Year In-Home Service Your homecare bed is eligible for up to three years of in-home service. Should your bed ever need repair, simply call HomeCare Hospital Beds and we will dispatch an authorized service technician to your home to diagnose and repair your bed absolutely free of charge.

In-home service on your bed means you’re covered for diagnostics, labor and repairs.

  • One year in-home service contract $150
  • Two year in-home service contract $195
  • Three year in-home service contract $250

Shipping Options

Standard Ground Shipping

Includes delivery of hospital bed to the front of your house or facility. This does not include bringing the hospital bed into the house.

Inside Delivery & Set-Up

Take the hassel out of ordering a hospital bed by having our experts assemble your new hospital bed in the room of your choice! Our Technicians Will:
  • Bring the hospital bed inside your loved one's home
  • Assemble the bed in the room of your choice!
  • Remove all boxes and packaging debris.
  • Provide in-service instruction on proper use, maintenance and warranties!
*Please note: Although we strive to have our technicians ready when you are, inside Set Up & Delivery may add 5-7 days to your delivery time!
*Availability date reflects average availability time-frame from the manufacturer and is not a guaranteed delivery date.
  • Weight Capacity: 350 lbs.
  • Height Range: 15" to 24" (Not Including Mattress)
  • Bed Deck: Grid Deck
  • Bed Size: 36" x 80"
  • Tendelenburg: Not Available
  • Maximum Back Angle: 60 Degrees
  • Warranty: Frame: 2 Years, Motor: 2 Years
