Description

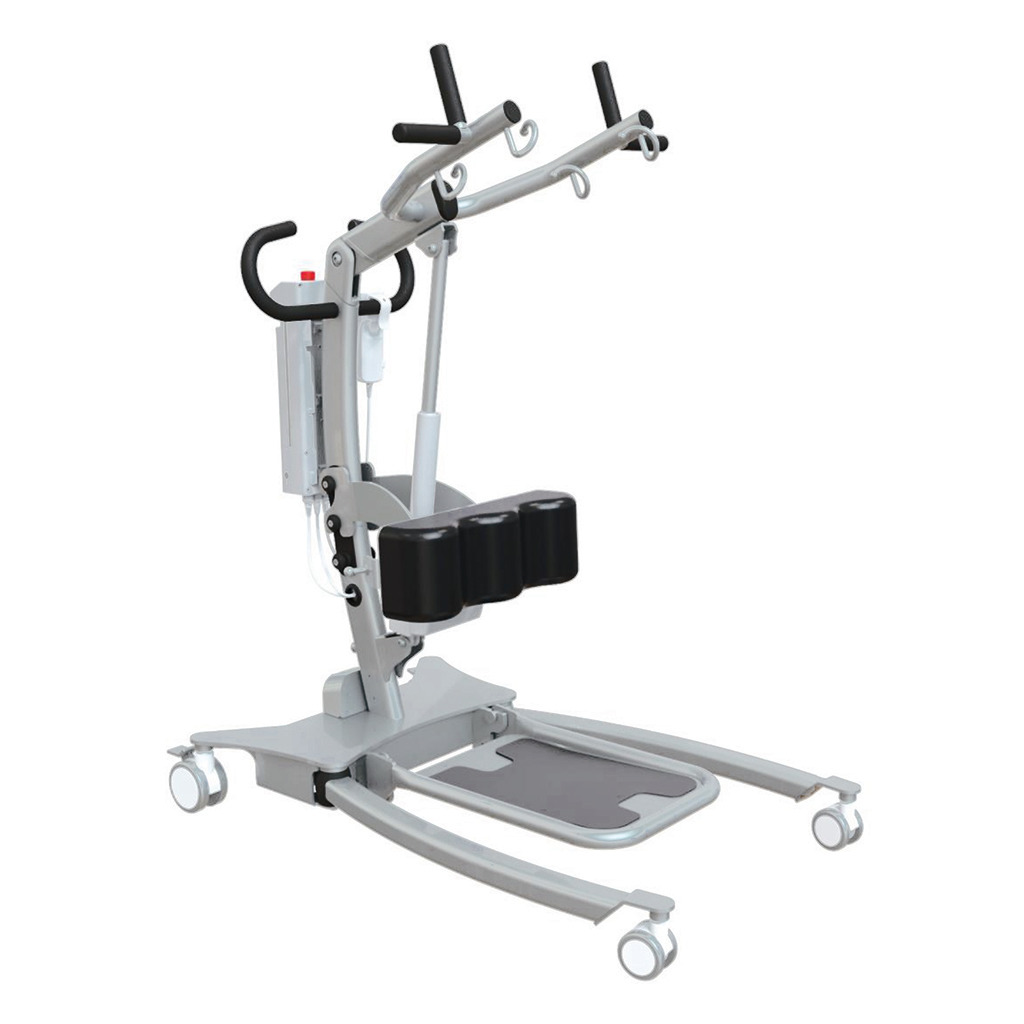

Drive Medical Sit To Stand Lift

Sit-to-Stand lifts are designed for individuals who have difficulty standing up on their own from a seated position. Individuals must be able to actively participate in the lifting process and be able to partially support their weight.

The Drive Medical Sit-to-Stand Lift features the lowest floor clearance in its class. The object obstruction sensor will stop the lift if the patient or caregiver are in the way. The 450 lb weight capacity and adjustable knee pad accommodates users of various sizes. Caregivers will appreciate the ergonomic vertical and horizontal position handholds.

** Patient sling sold separately **

Features

• Lowest floor clearance in its class
• Provides stable assistance in standing, transferring and toileting
• Four sling attachment hooks enable the lift to accommodate a variety of sling designs
• Extra-wide, non-skid footplate provides a stable base for foot positioning
• Easy-roll 4″ rear casters and 3″ front casters mean stability and easy maneuverability over a variety of surfaces
• Redundant controls on base and hand pendant
• 24V DC motor provides power and reliability
• Audible and visual alerts if weight capacity is exceeded
• Emergency stop button and manual lowering feature
• Visual battery fuel indicator on hand control
• Object obstruction sensor stops the lift if the patient or caregiver is in the way
• Adjustable knee pad and removable foot plate
• Ergonomic vertical and horizontal position handholds
• Includes wall mount charger, charging cradle and removable, rechargeable battery
• Battery can be charged on or off the lift
• Audible and visual battery alerts

Power base model features

• LCD screen for visual readout
• Maintenance monitoring
• Tracking to support no-lift policies

Specifications

• Weight capacity: 450 lbs
• Base length: 42″
• Base clearance: 2.7″
• Battery type: Lead acid
• Casters: 3″ front/4″ rear
• Charger input: 100 – 240 VAC,50/60 Hz
• Charger output: 28 VDC, 1.5 A
• Sound level: Less than 65DB
• Height: 59″
• Weight: 148 lbs
• Frame Warranty: Limited Lifetime
• Electrical Warranty: 5 years
• Battery Warranty: 1 year

Options

• Power base: Drive Medical# STSP450
• Manual base: Drive Medical# STSM450
