Description

Drive Medical Levantar Patient Lift

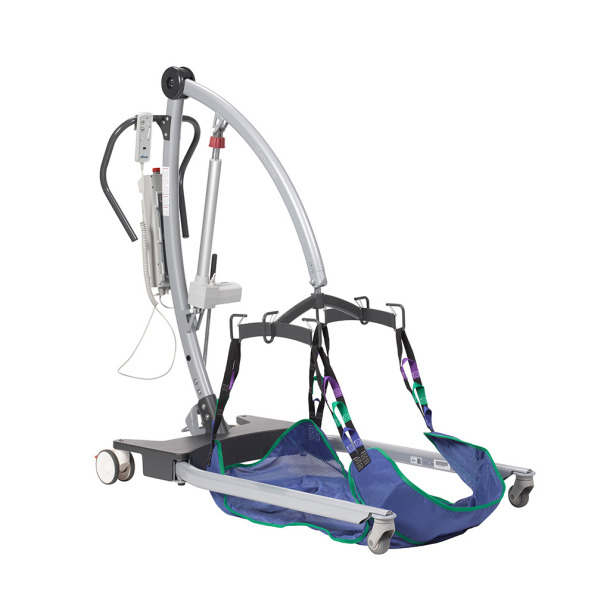

The battery-powered Drive Medical Levantar Patient Lift features an arched mast that allows more room for patient during transfers. Redundant controls allow caregivers to operate the lift if the hand pendant becomes inoperable. Oversized sealed casters roll easily over floors to minimize strain on the caregiver’s back and arms. Obstruction sensors stop the lift if a patient or caregiver are in the way.

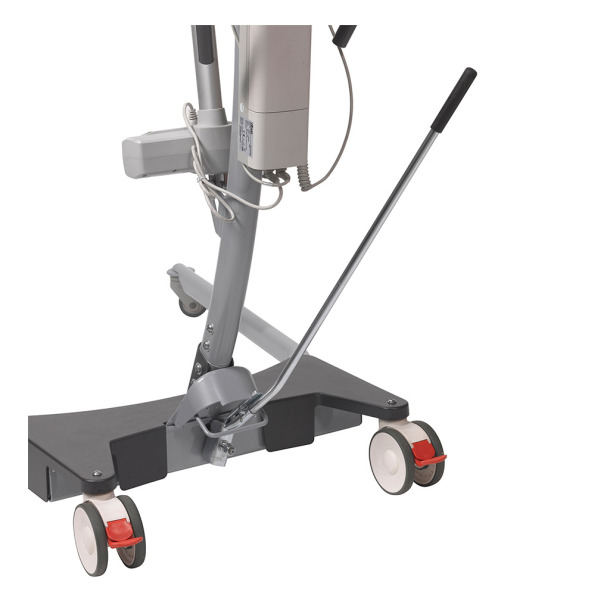

The Levantar is available with power or manual base width adjustment.

** Patient slings sold separately **

Features

• Elegant, contemporary design with arched mast
• Smart/Safety Control Module stores useful servicing information about the lift:
  • Work counter
  • Intelligent cycle counter
  • Service indicator
  • Service interval indicator
  • Overload information
  • 3-step battery indicators
• Oversized sealed rear casters roll easily and lock securely
• Broad lifting range can pick up patients from the floor
• Redundant controls allow caregivers to operate the lift if the hand pendant becomes inoperable
• Visual battery power level indicators on hand pendant and lift control module
• Audible alerts for low battery, weight overload and scheduled maintenance
• Obstruction sensors stop the lift if a patient or caregiver are in the way
• Maintenance monitoring options: monthly or by lift cycles
• Wide spreader bar features 6 sling connection points for stability and patient comfort
• Includes battery and external charger stand to allow recharging on or off the lift

Specifications

• Weight Capacity: 500 lbs
• Base external width: 32″ closed/46″ open
• Base internal width: 26″ closed/40″ open
• Height range: 28″ – 76″
• Lifting range: 33″ – 76″
• Leg height: 5.3″
• Ground clearance: 3″
• Turn radius: 56″
• Casters: 3″ front/5″ locking rear
• Net weight: 132 lbs
• Warranty: Lifetime limited
• Battery Warranty: 1 year
• Electronics Warranty: 5 years

Optional Patient Scale

• Helpful for patients who require frequent weight measurement as part of therapy
• Digital scale installs directly onto the lift for convenience and accuracy
• Readings in kg or lbs
• Weight capacity: 600 lbs (300 kg)
• Dimensions: 3″ x 2″ x 5.5″
• Weight: 22 oz
• Easily operated 3-button display
• Requires three (3) AAA batteries
• Battery life: approximately 150 hours

Options

• Levantar with Manual Base: Drive# FLNP500
• Levantar with Powered Base: Drive# FLP500
