Description

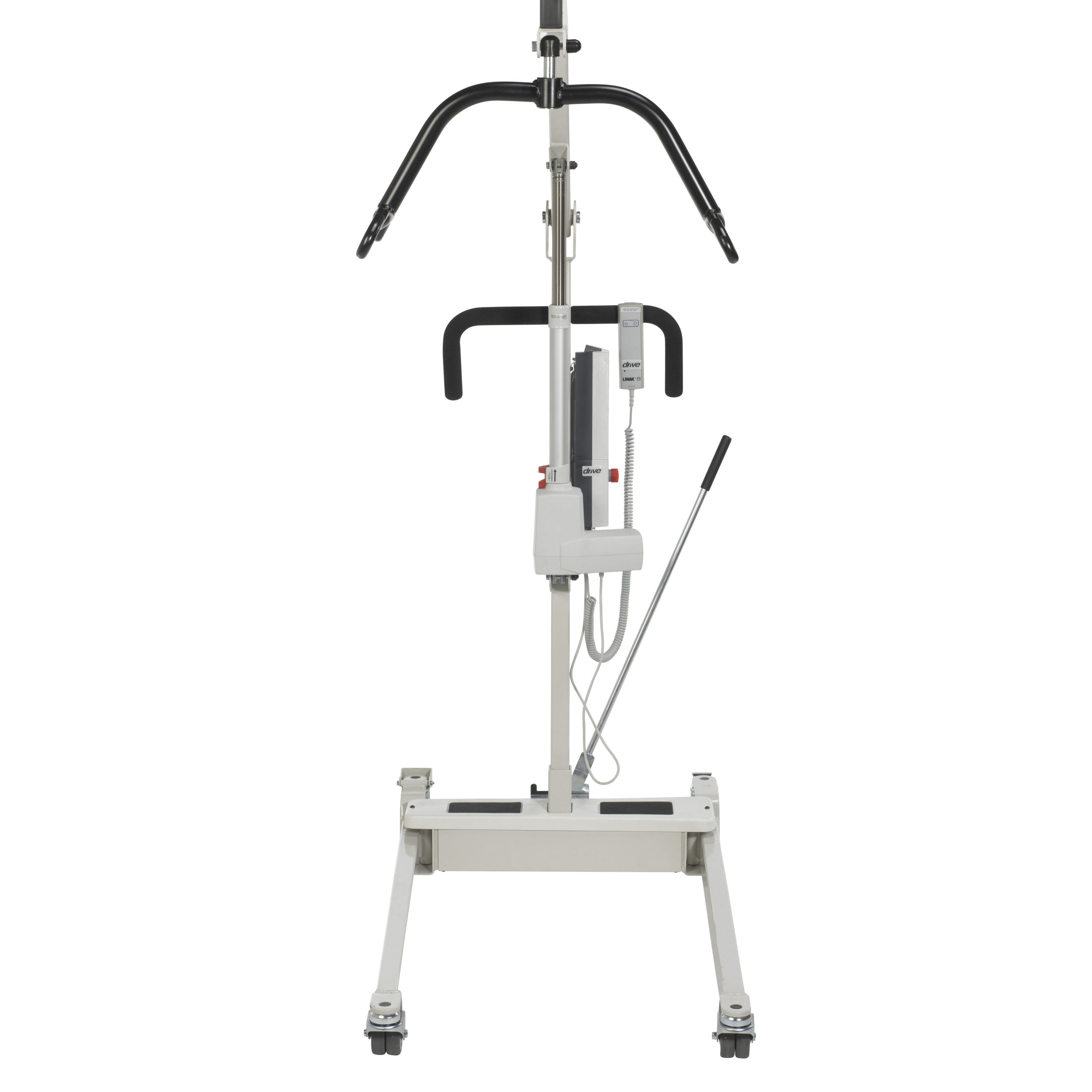

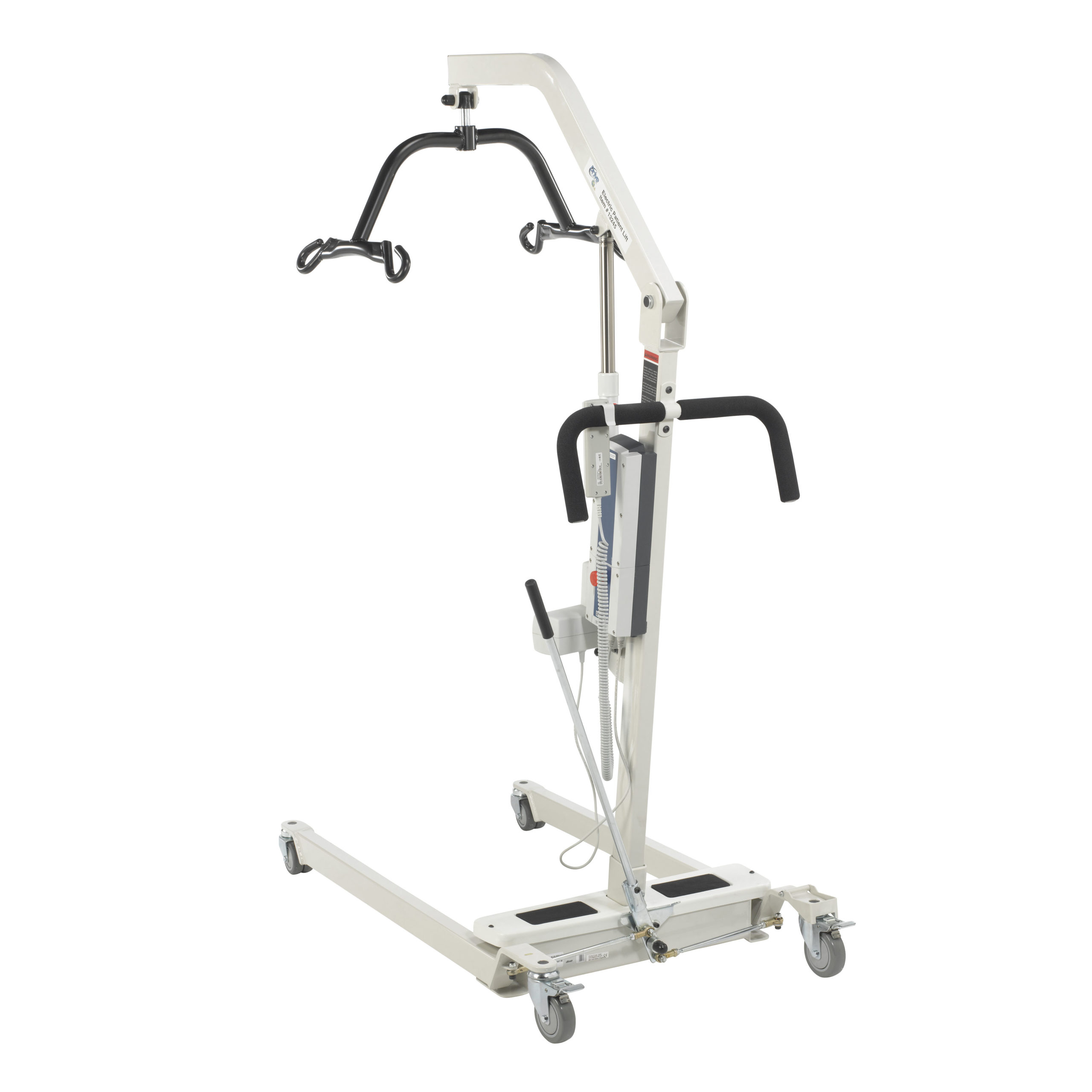

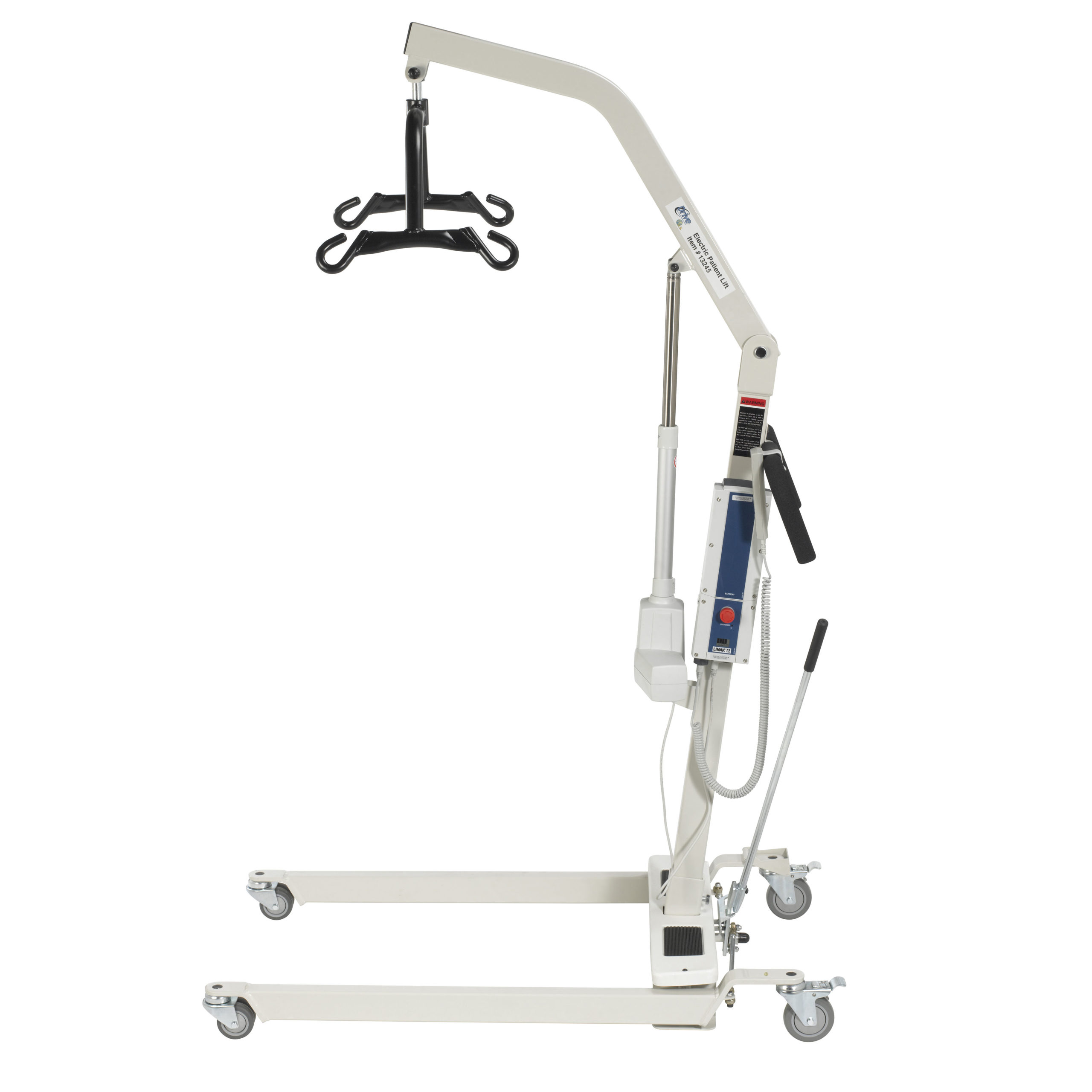

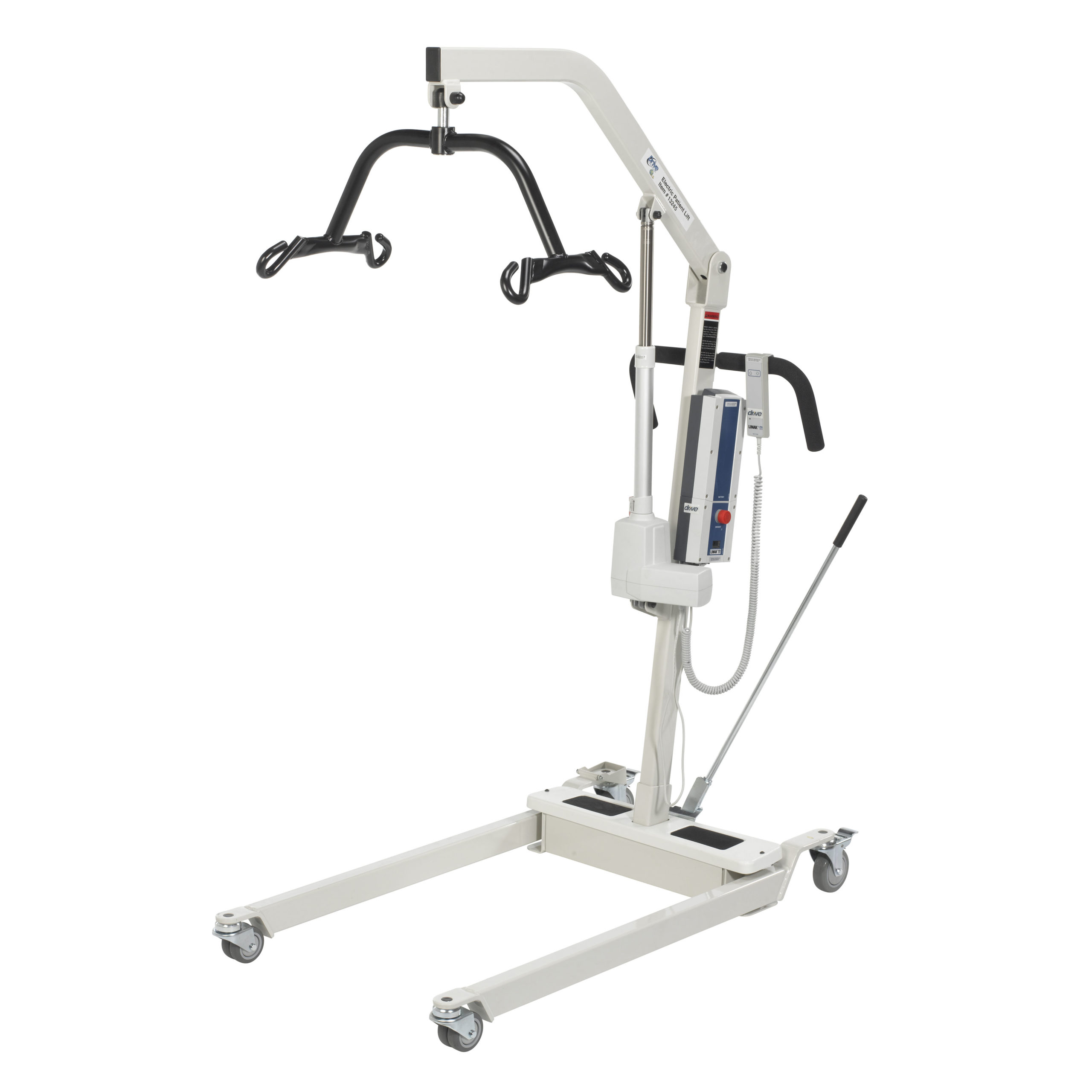

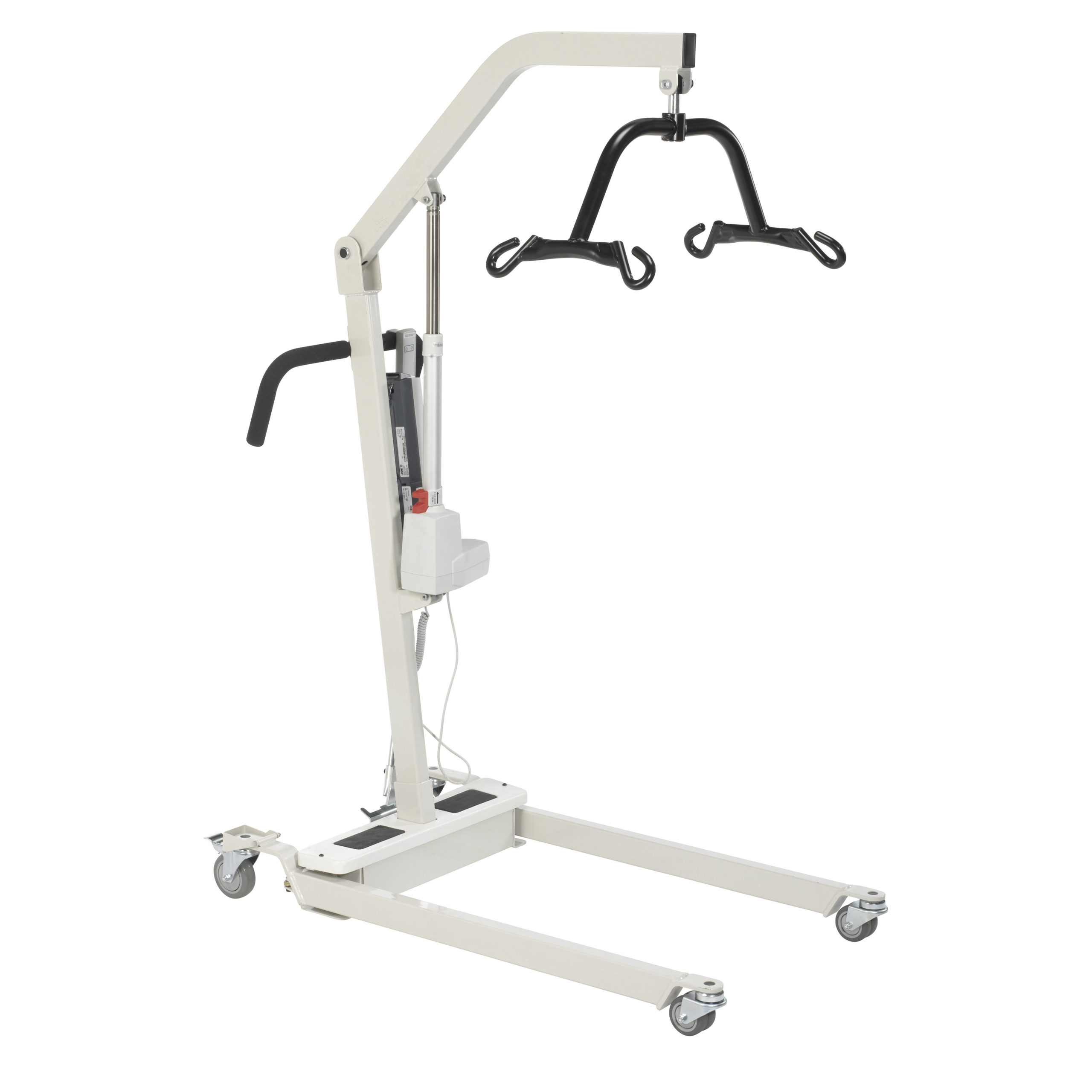

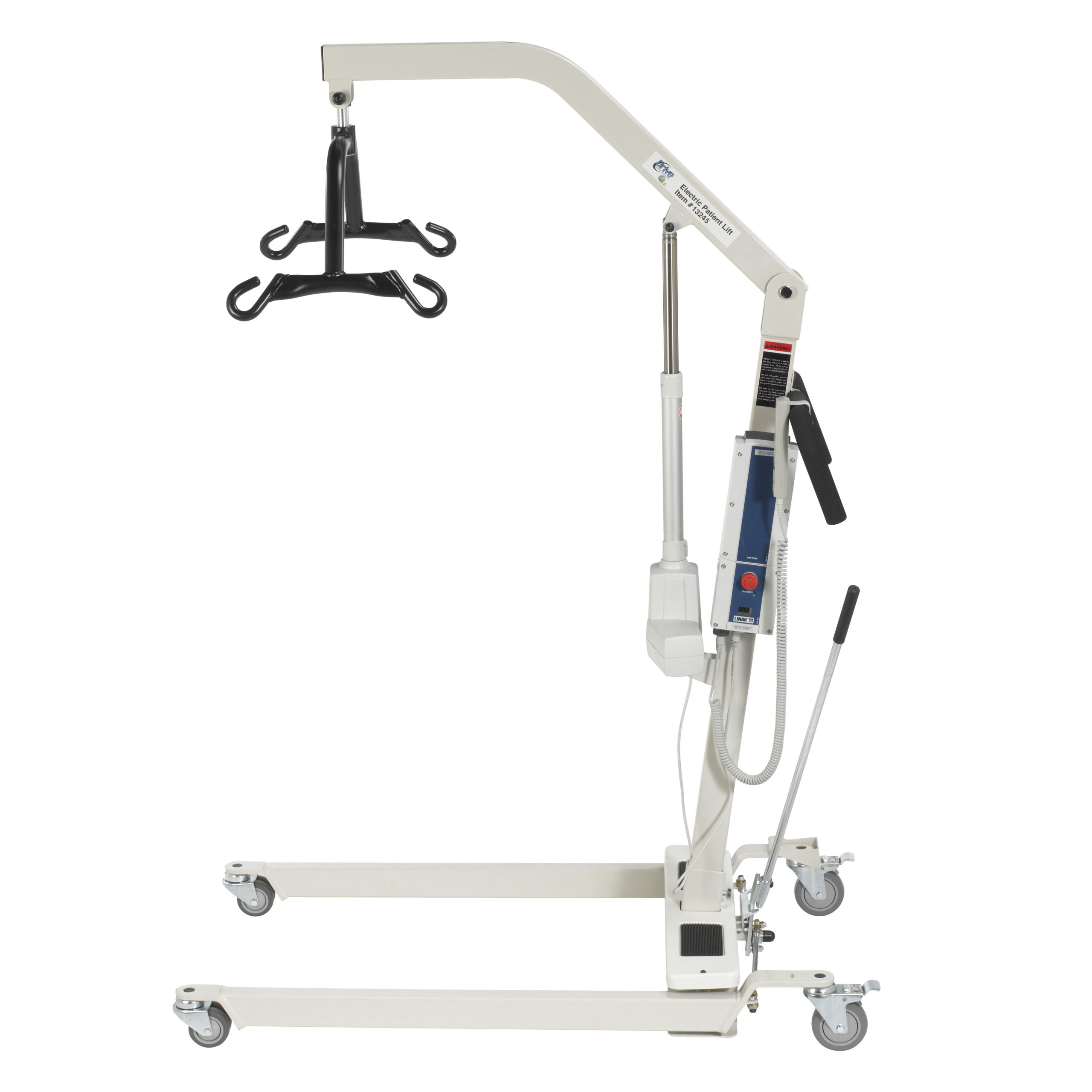

Drive Medical Bariatric Battery-Powered Lift
Heavy duty construction of the Bariatric Power Lift from Drive assists in a safe lift for both caregiver and patient. The actuator pump features a weight capacity of 600 lbs and an emergency button for manual lowering.
The extra-wide cradle rotates 360 degrees to complete difficult transfers effectively and safely. Transfers to elevated surfaces are accommodated by the 74.5” maximum boom height. The extra wide powder-coated cradle rotates 360 degrees and includes 4-point hook up. Sturdy base legs – with dual, 3″ heavy duty front casters – adjust easily and lock securely into open position with padded shifter handles. The battery will last through multiple lifts before recharging is required.
** Patient sling sold separately **
Features
- Heavy gauge steel construction
- White powder-coated finish is easily cleaned
- Battery does not need to be removed for recharging
- Simply plug in the lift unit to charge
- Lift will not operate while plugged in
- Jumbo actuator pump with Emergency button
- Manual mode to safely lower patient if needed
- Base legs adjust easily and lock securely into open position
- Padded shifter handle for caregiver comfort
- Extra wide swivel bar rotates 360 degrees with 4 sling connections
- High lift range allows transfer to high surfaces
Specifications
- Weight capacity: 600 lbs
- Base clearance: 2″
- Base height: 4.5″
- Base width range: 25″ – 45.75″
- Boom height range: 32″ – 75.5″
- Casters: 3″ Front/4″ Rear
- Motor: Linak
- Battery: 24V
- Weight: 132 lbs
- Frame Warranty: Limited Lifetime
- Components and Electrical Parts Warranty: 1 Year
Drive Medical# 13244
